Products

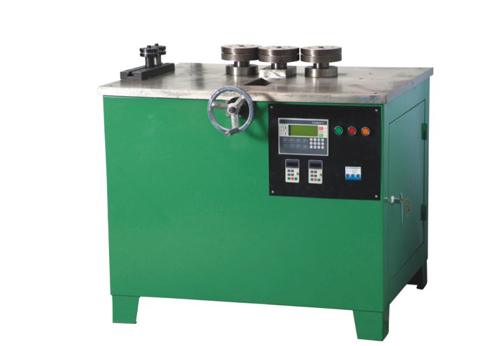

Metal Ring Bender

Suitable for volume-produce. 3 driving rings. and the PLC size control system make the ring diameter tolerance very good. Producing range is diamter 180-4000mm.


Send Inquiry


Description

KXT E2000C is a new design rolling machine for SWG IR and OR. It has 3 driving rings. and the PLC size control system make the ring diameter tolerance very good. It can ring roll any size outer ring or inner ring by single run. Producing range is diamter 180-4000mm. Thickness 2mm, 3mm and 4mm. Ring width: 6-60mm.

Suitable for volume-produce.


Specification as following:
STYLE KXT E2000C Ring Bending machine for SWG IR and OR
Bending Ring thickness 2mm, 3mm, 4mm
Bending Ring width 6mm--60mm
Maximum ring OD 4000mm
Minimum ring ID 180mm
Total power 5kw
Spindle motor power 0.75kw*3
Power supply voltage 380V/220V as request,3phases
linear speed 0-200mm/s
PLC xinjie
Frequency Converter 2.2G
Machine measurement 1050*900*1000mm
Machine net weight 380kg
